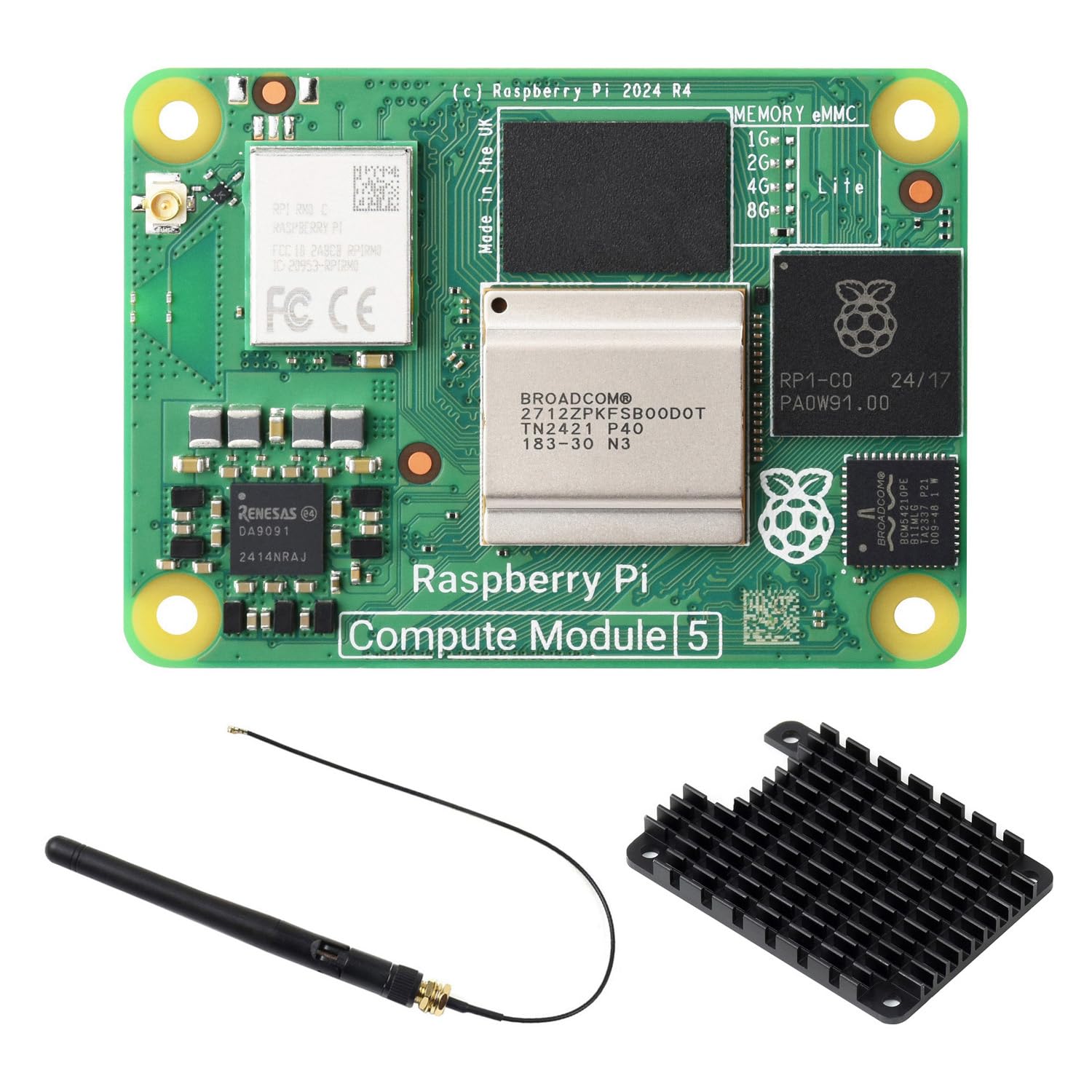

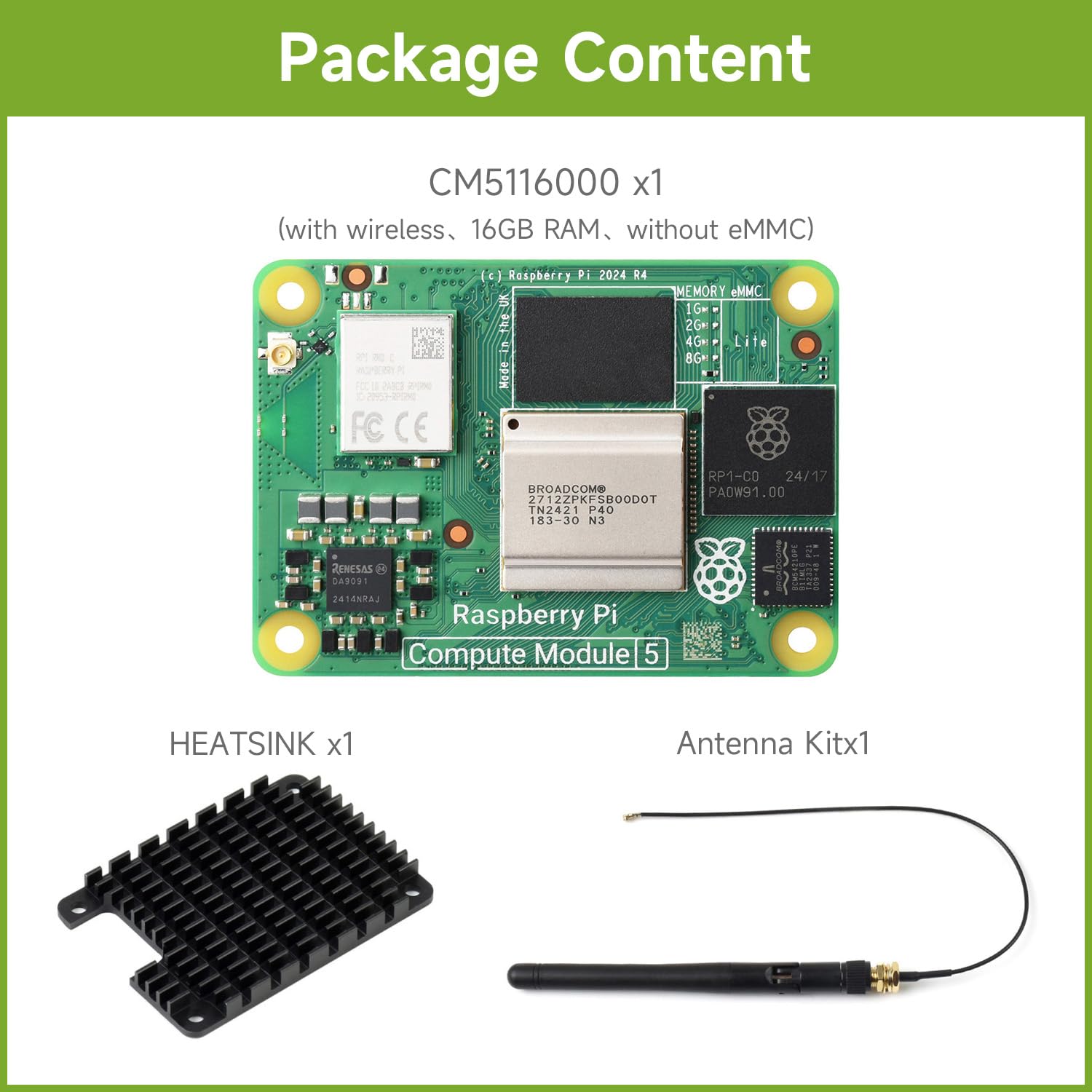

Waveshare CM5 Pi Compute Module 5，Comes with an Official Raspberry Pi CM5116000 (with Wireless, 16GB RAM, 0GB (Lite) eMMC Flash), an Antenna Kit and a HEATSINK

Marke: Waveshare
Kompatible Geräte: Verschiedene Einheiten
RAM-Speichertechnologie: DDR4
Chipset-Typ: Broadcom BCM2712
Plattform: Linux
Modellname: Raspberry Pi CM5
Speicherkapazität: 16 GB
Maximale Größe des Arbeitsspeichers: 16 GB
Grafikkartenschnittstelle: PCI Express
USB-Anschlüsse insgesamt: 1

- 16GB RAM, 0GB (Lite) eMMC Flash, with WIFI Raspberry Pi Compute Module 5 is a system on module (SoM) that delivers the power of Raspberry Pi 5 in a compact form factor, integrates a quad-core Arm Cortex-A76 processor, providing a variety of RAM and eMMC flash options, supports power circuitry and a rich set of interfaces.
- Compute Module 5 enables you to leverage Raspberry Pi 5's powerful hardware and optimised software stack in your own custom systems and form factors.
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance More options for RAM (2GB / 4GB / 8GB / 16GB) More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules;
